MEDIAWEL 30

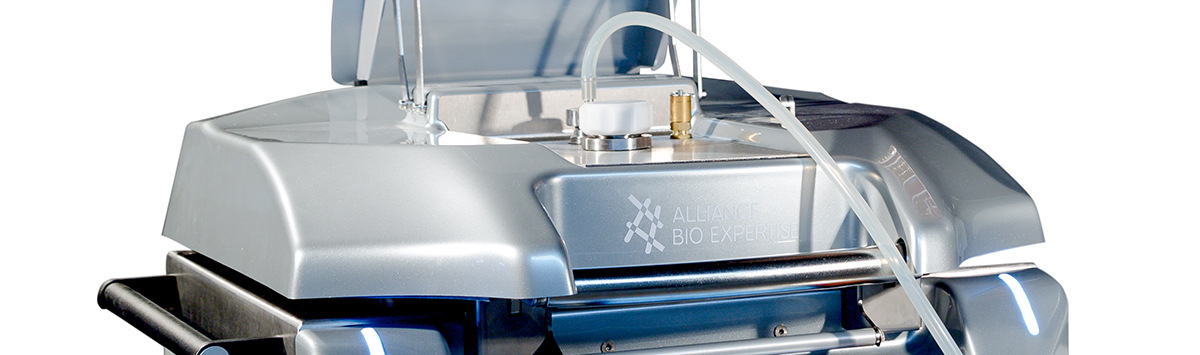

MEDIAWEL 30 – AUTOMATED MEDIA PREPARATOR – 2.5 – 30 LITERS

MEDIAWEL 30 is an automatic media preparator that provides the ability to quickly and accurately produce all types of agar, broths and dilution fluids.
With capacities from 2.5 litres to 30 litres and a high temperature accuracy, MEDIAWEL 30 can increase productivity, quality, repeatability and traceability. You can make your media faster and be more flexible in terms of the type of media you can prepare.

The patented, large stirring rod ensures the entire batch has a high viscosity and the extra built-in pre-filter prevents contamination. In addition, this pre-filter protects the more expensive main filter from clogging and is thus a cost-effective feature.

MEDIAWEL 30 is safe to use – the safety lid locks when the temperature reaches 80°C. Using various locking mechanisms, visible and audible alarms, and an anti-shock housing, the risk of injury is significantly reduced – compared to the mechanical preparation of media. Full traceability and easy export of data via a USB interface, speeds up work processes and optimises workflow.

Easy to clean, MEDIAWEL has a drain mechanism underneath to facilitate cleaning the bowl. A bucket can be placed underneath the device to drain off the water with ease.
Real time date monitoring is available through the WIFI and Ethernet connection to your PC, Smartphone or tablet. Each cycle is recorded and stored locally and can be exported (PDF or CSV format) via the USB drive.

MEDIAWEL 30 is compatible with other items of laboratory equipment, such as peristaltic pumps (DOSYWEL), pourer stackers (DISTRIWEL) and gravimetric diluters (DILUWEL).



  • Guarantees sterilization & fertility of your culture medium
  • Time saving (fast heating and cooling)
  • Temperature monitoring (+/- 0.5°C) directly inside the medium
  • Continuous stirring during preparation and dispensing
  • All in one unit: sterilizer, homogenizer, water-bathing, and traceability
  • Reproducibility: store up to 50 programs and recall them any time
  • Full data traceability
  • Fast heating & cooling
  • Sterilization time: 1 – 99 min
  • Sterilization t°: 95 – 125°C
  • Dispensing t°: 25 – 80°C
  • T° accuracy: +/- 0.5°C (after t° stabilization)
  • Remaining volume: <130ml
  • Blood/Antibiotics addition during the cycle
  • Temperature probes: up to 3 (standard / monitoring / calibration)
  • 2 pressure monitoring.
  • Safety pressure release: safety valve
  • Dispensing ports: adapters for 17mm, 12mm and 6.4mm
  • Continuous Homogenization: Large smooth stirrer (1807 cm2) for higher homogeneity. Slow stirring (9 adjustable speeds) to avoid bubbling
  • Dimensions (W x H x D): 585 x 1053 x 735 mm
  • Electricity Supply: MEDW1001 : 400V +/- 10%, three-phase (18A max per phase), 50/60 Hz, 9000W +/- 10% / MEDW1002 : 208V +/- 10%, three-phase (28A max per phase), 50/60 Hz, 7400W +/- 10%  (for 110/120V countries only, such as US, Canada, Central America)

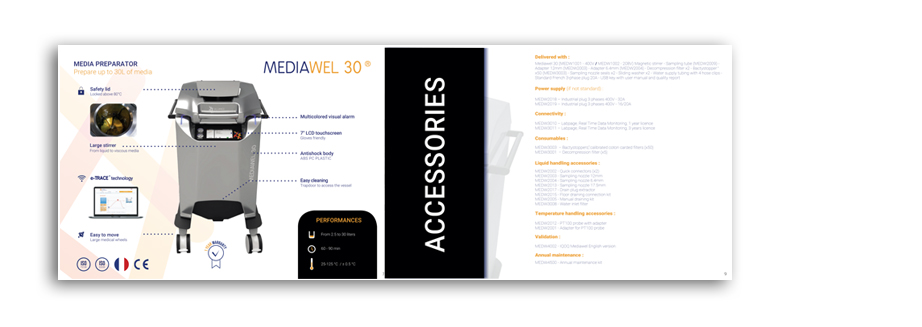

You need the brochure for the Mediawel 30 ?
